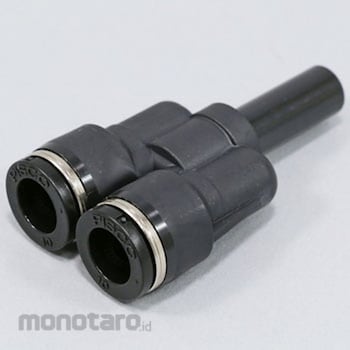

PISCO Branch Union Wai
#Grup produk P102530177
Spesifikasi
| Material | Metal body, guide ring/brass+nickel plating. Resin body/polybutylene terephthalate (PBT). Open ring/polyacetal (POM). Lock nail/stainless steel. Tube/polyurethane, nylon, etc. Elastic sleeve, O ring/nitrile rubber (NBR) |
|---|---|
| Shape | Branch Union Wai |
| Color | Open Ring/Resin Body: Black |
| Type | Standard type |
| Operating Temperature Range | 0 to 60°C (without freezing) |
| Effective Sectional Area | 7.5mm² |
| Maximum Working Pressure | 1MPa |
| Dimension B | 53.2mm |
| Dimension D (mm) | 3.2φ |
| Dimension E | 21.5mm |
| Dimension F | 15.8mm |
| Dimension J | 12mm |
| Dimension P1 | 12.5φ mm |
| Dimensions c | 17mm |
| Fluid | Air, water (conditioned) |
| Material (metal hood)/Processing | Brass (electroless nickel plating) |
| Orifice Diameter | 3.9φ mm |
| Packing | Normal packaging |
| Tube Outside Diameter | 6φ mm |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
When water use, the surge pressure below the maximum operating pressure, please be sure to use the insert ring.Ulasan Produk
