Be used for general air pressure piping, is the most standard one-touch fittings.
. Large selection of models, correspond to any air pressure piping.
. After installation, you can change the take-off angle of the tube. (Limited to the combination products of the connection port shape/screw and one-touch fittings.)
Useable: Connection of the tube and the tube (same diameter)
. For urethane or nylon tube

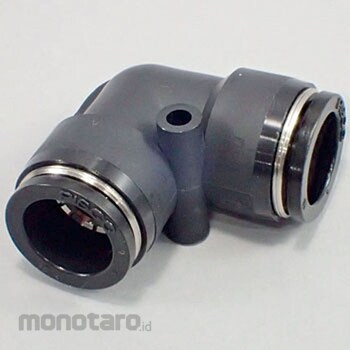

PISCO Union Elbow
#Grup produk P102530113
Spesifikasi
| Material | Metal body: Brass+Nickel plating. Resin body: Polybutylene terephthalate (PBT). Open ring: polyacetal (POM) |
|---|---|
| Shape | Union elbow |
| Color | Open Ring/Resin Body: Black |
| Type | Standard type |
| Operating Temperature Range | 0 to 60°C (without freezing) |
| Effective Sectional Area | 91.6mm² |
| Dimension D (mm) | 4.2φ |
| Dimension E | 33.1mm |
| Dimension F | 12mm |
| Dimension P | 25mm |
| Dimensions c | 24.1mm |
| Fluid | Air, water (conditioned) |
| Maximum Working Pressure | 1MPa |
| Orifice Diameter | 13φ mm |
| Packing | Normal packaging |
| RoHS Directive | Yes |
| TRUSCO Number | 290-8557 |
| Tube Outside Diameter | 16φ mm |
| Vacuum Pressure | -100kPa |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
use fluid is the time of water, please use the surge pressure at or below the maximum operating pressure. General tap water is available. Please be sure to attach the insert ring.Ulasan Produk
