Be used for general air pressure piping, is the most standard one-touch fittings.
. Large selection of models, correspond to any air pressure piping.
. After installation, you can change the take-off angle of the tube. (Connection port shape: limited to the combination products of the screw and the one-touch fitting)
. The sealing material is Yes in advance application. Therefore, the sealing tape is not required.
Useable: Connection of the screw and tube

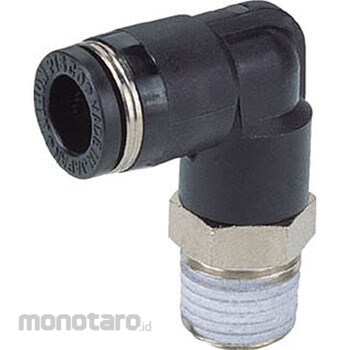

PISCO Tube Fitting Elbow
#Grup produk P102530007
Spesifikasi
| Material | Metal body: Brass+Nickel plating. Resin body: Polyethylene terephthalate (PBT). Open ring: polyacetal (POM) |
|---|---|
| Shape | elbow |
| Color | Open Ring/Resin Body: Black |
| Type | Standard type |
| Conformity Tube Outside Diameter | 10φ mm |
| Operating Temperature Range | 0 to 60°C (without freezing) |
| Connection Thread | 1/8 |
| Dimension A (mm) | 8 |
| Dimension B | 25mm |
| Dimension E | 25.5mm |
| Dimension L | 29.8mm |
| Dimensions c | 20.2mm |
| Effective Sectional Area | 22.4mm² |
| Fluid | Air, water (conditioned) |
| Material (metal hood)/Processing | Brass (electroless nickel plating) |
| Maximum Working Pressure | 1MPa |
| Orifice Diameter | 6φ mm |
| Packing | Normal packaging |
| Screw Dimensions | R1/8 |
| TRUSCO Number | 328-0292 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
use fluid is the time of water, please use the surge pressure at or below the maximum operating pressure. General tap water is available. Please be sure to attach the insert ring.Ulasan Produk
