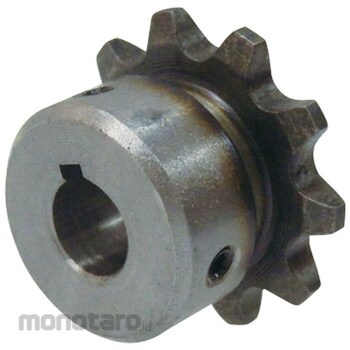

Katayama Chain FBN Finished Bore Sprocket New Jis Key FBN35B Series (Teeth 23)
#Grup produk P102526633
Spesifikasi
| Material | Carbon steel for machine structural use |
|---|---|
| Number of Gears | 23 |
| Type | FBN35B |
| Hardness | Tooth tip induction hardening |
| Sprocket Form | B type |
| Boss BD | 60mm |
| Boss Length BL | 20mm |
| Dimension A (mm) | 6 |
| Face Width | 4.3mm |
| Outside | 75φ mm |
| Pitch | 69.95φ mm |
| Using Chain | No.35 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
FBN sprocket is KANA standard NK sprocket with shaft hole, key groove and finished product sprocket with further set screw processing. The quality is stable with high precision by the intensive production system with excellent equipment and thorough quality control. Statistics More than 1900 variations match the needs of the user and reduce the total cost. FBN (New JIS processing) is processing based on the new JIS standard (JIS B 1301-1976) parallel key. The tolerance of the key width is H7.
