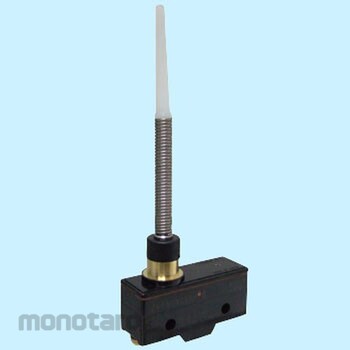

OMRON General Purpose Basic Switch Z Basic Type
#Grup produk P102415577
Spesifikasi
| Allowable Operating Speed (mm-m/s) | 0.01 to 1 (value for push button) |
|---|---|
| Vibration Resistance (Malfunction) | 10 to 55 Hz double amplitude 1.5 mm (malfunction within 1 ms) |
| Lead | VSFMore |
| Compliant standard | UL, CSA, TUV (EN61058-1), CCC (GB14048.5) |
| Contact Configuration | 1c |
| Contact Interval (mm) | 0.5 (standard) |
| Contact Material | Silver |
| Contact Resistance (miliΩ) | 15 or less (initial value) |
| Contact Specifications | Rivet |
| Electric Shock Protection Class | Class I |
| Family Type | Z |
| Insulation Resistance (MΩ) | 100 or more (at DC500V megger) |
| PTI (Tracking Characteristic) | 175 |
| Rated Current (A) | 15 |
| Shock Resistance Durability (m/s²) | Up to 1000 |
| Terminal Type | Screw terminal (internal tooth washer) |
| Withstand Voltage | (Between terminals of the same polarity) 1000 VAC 50/60 Hz 1 min (Between live metal parts and ground, between each terminal and non-live metal parts) 2000 VAC 50/60 Hz 1 min |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Best-selling Basic Switch Boasting High Precision and Wide Variety
Feature
- A large switching capacity of 15 A with high repeat accuracy.- A wide range of variations in contact form for your selection basic, split-contact, maintained-contact, and adjustable contact gap types.- A series of standard models for micro loUlasan Produk
