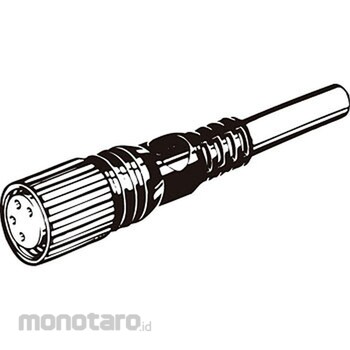

OMRON Round Waterproof Connector (M8/S8) Connector Socket with Cable One Side Connector
#Grup produk P102415498
Spesifikasi
| Cable (mm²) | Standard cable Φ4 4-core x 0.2 (0.12 / 18) |
|---|---|
| Cable Direction | Straight |
| Color | Contact block: light gray Cover: black |
| Connection | Brown white blue black |
| Contact Material | Phosphor bronze / nickel base gold plating |
| Contact Resistance (miliΩ) | Connector: 40 or less (DC 20 mV or less, 100 mA or less) |
| Cover Material | Soft PBT |
| Installation | M8 type |
| Insulation Resistance (MΩ) | 103 or more (at 500 VDC) |
| Material (O-ring) | Rubber |
| Number of Poles | 4 |
| Operating Temperature Range (°С) | -25 to +70 |
| Protection Class | IP67(IEC529) |
| Rated Current (A) | 1 |
| Rated Voltage (V) | DC125 |
| Shape | Straight |
| Surface Treatment | Fixing tool: Nickel plating |
| Tensile Strength | Cable: 49N / 15s |
| Withstand Voltage | Connector: AC1000V 1min (Leakage current 1mA or less) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Sensor I/O Connectors (Sockets on One Cable End)
