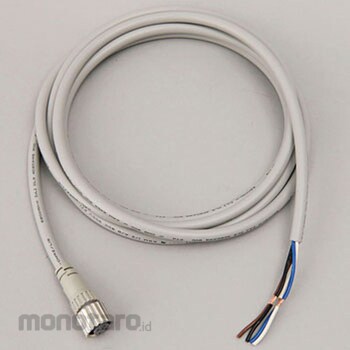

OMRON Round Type Waterproof Connector (M12) Connector Socket with Cable One Side Connector
#Grup produk P102415470
Spesifikasi
| Protection Class | IP67(IEC529) |
|---|---|
| Type | For DC |
| Cable Holding Strength (N/15s) | Outer diameter Φ6: 98, Outer diameter Φ4~Φ5: 49, Outer diameter: Φ3: 29 |
| Operating Humidity Range | 20 to 85%RH |
| Cable Length (m) | 2 |
| Rated Voltage (V) | DC250 |
| Cable | Flame-retardant, bending-resistant cable |
| Color | Contact block: light gray |
| Connector | One side connector |
| Contact Material | Phosphor bronze |
| Contact Resistance (miliΩ) | Connector: 40 or less (20mV or less, 100mA or less) |
| Core x Size (mm²) | 4x0.5 |
| Cover Material | Soft PBT (UL94V-0) |
| Insulation Resistance (MΩ) | 103 or more (at 500 VDC) |
| Material (O-ring) | Rubber |
| No. of Cable Cores | 4 |
| Number of Poles | 4 |
| Operating Temperature Range (°C) | -25 to +70 |
| Rated Current (A) | 1.5 |
| Tensile Strength (N/s) | Assembly part fixed: 98/15 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
- Compact FA connectors meet IP67 requirements and ensure a 94V-0 fire retardant rating.- A wide array of connectors makes a wiring system more modular, simplifies maintenance, and reduces downtime.- Connectors with Cables and Connector AssembliUlasan Produk
