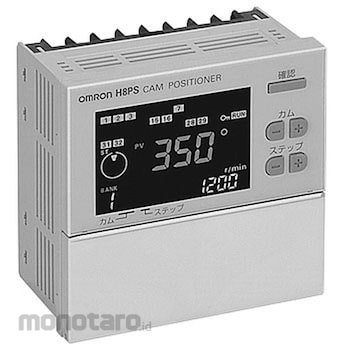

Cam Positioner , Flush Mounting , 8 Outputs
Additional functions:
- Origin compensation (zeroing)
- Rotation direction switching
- Angle display switching
- Teaching
- Pulse output
- Angle/number of rotations display switching
- Puncture
- Angle advance
- Number of rotations alarm output
- Setting with support software (order separately).
Cam Precision: 0.5° (for 720 resolution), 1° (for 256/360 resolution).
OMRON Cam Positioner
#Grup produk P102415212
Sebelum PPN:
Rp8.399.900 - Rp9.099.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Family Type | H8PS |
|---|---|
| Function | Encoder rotation direction switching, encoder origin specification, angle display switching, rotation display monitor, teaching function, pulse output function, angle/rotation speed display switching function, lead angle function, rotation speed alarm output function, all protect function, cam protect function, Setting step number limit function |
| Insulation Resistance (MΩ) | 100 or more (at 500V DC) between conductive terminals and exposed non-current-carrying metal parts, between all conductive parts and USB connectors |
| Cam Output During Operation | NPN open collector transistor output DC30V max. 100mA/max. (Please use at a total of 1.6A or less for all cam outputs and outputs during operation) Residual voltage DC2V or less |
| EMC standard | EMI: EN61326 / Radiated disturbance field strength: EN55011 Group1 class A / EMS: EN61326 / Electrostatic discharge immunity: EN61000-4-2 / Field strength immunity: EN61000-4-3 / Conducted noise immunity: EN61000-4-6 / Burst Noise immunity: EN61000-4-4・Surge immunity: EN61000-4-5 |
| Electrostatic Strength (kV) | 8 (malfunction), 15 (destruction) |
| Impact Durability (m/s²) | 300 3 times each in each direction of 3 axes |
| Impulse Voltage (V) | Between power input terminals: 1k, between conductive terminals and exposed non-current-carrying metal parts: 1.5k |
| Noise resistance | Between power supply terminals: ±480V, between input terminals: ±600V Square wave noise by noise simulator (pulse width 100ns/1μs, rise 1ns) |
| Number of Setting Steps | Up to 10 steps per cam (can be turned ON/OFF up to 10 times) |
| Output Configuration | NPN transistor output |
| Response Time (ms) | Output: 0.3 or less |
| Safety Standard | cULus(Listing)：UL508/CSA C22.2 No.14 |
| Shock Malfunction (m/s²) | 200 3 times each in each direction of 3 axes (excluding when communicating via USB) |
| Unit of Measurement (°) | 0.5 increments (at 720 resolution), 1 increments (at 256/360 resolution) |
| Vibration Resistance (Durability) | 10 to 55Hz, single amplitude 0.75mm, 3 directions, 2h each |
| Vibration Resistance (Malfunction) | 10 to 55Hz, single amplitude 0.5mm, 3 directions, 10 minutes each, excluding USB communication |
