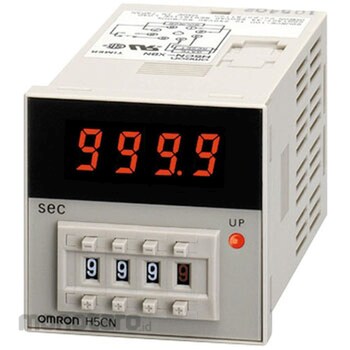

OMRON Quartz Timer
#Grup produk P102415133
Sebelum PPN:
Rp3.099.900 - Rp3.299.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Type of Sign | Surface mounting, embedded mounting (shared) |
|---|---|
| Service Life | Mechanical: 10 million times or more Electrical: 100,000 times (AC250V 3A resistance load) |
| Case Color | Light gray (Munsell 5Y7 / 1) |
| Type of Display | 7-segment LED (character height: 8 mm), UP lit display |
| Control Output | Reed switch 1c: AC250V 3A resistive load (cosΦ = 1), minimum applicable load DC5V 10mA (P level, reference value) |
| Withstand Voltage | (Between current-carrying terminals and exposed non-current-carrying metal parts, between operation power supply circuit and control output circuit) AC2000V 50/60Hz 1min |
| Dimensions (mm) | 48x48 |
| Influence of Voltage | (Ratio to set value) ±0.01%±0.05s or less (for power supply start) ±0.005%±0.03s or less (for reset start) |
| Input Signal | Reed contact: Input by opening/shorting of contact Non-contact: Input by ON/OFF of open collector transistor |
| Insulation Resistance (MΩ) | (Between conductive part terminals and exposed non-current-carrying metal parts, between operation power supply circuit and control output circuit) 100 or more (at 500 VDC megger) |
| Operating Ambient Temperature (°C) | -10~+55 (no freezing) |
| Power Consumption | Approx. 12 VA / 2.5 W (at 240 VAC, 50 Hz) |
| Power Supply Voltage (V) | AC100 to 240 |
| Reset | Power reset: Minimum power release time 0.5s External reset and gate: Minimum reset input signal width 0.02s, residual voltage 2V or less |
| Storage Temperature (°C) | -25~+65 (no freezing) |
| Type of Operation | Timed operation, integration operation |
| Vibration Resistance (Destruction) | 10~55Hz, single amplitude 0.75mm, 3 directions, 2h each |
