Small Slim Safety Relay
forced guide contact relay with EN standard (EN 50205 / Class A VDE certified).
Back up the machine's CE marking (machine order).
By adopting the structure of the interlock circuit, the dangerous condition of the machine is avoided.
We have 4 poles and 6 poles.
Pin arrangement that facilitates PWB pattern routing.
Reinforced insulation between input and output. Some reinforced insulation between different poles.
Withstand voltage:
Between the coils contacts, Ikyokukan (excluding 3-4 interpolar): AC4000V 50 / 60Hz 1min
Ikyokukan (3-4 interpolar) AC2500V 50 / 60Hz 1min
homopolar contact between: AC1500V 50 / 60Hz 1min

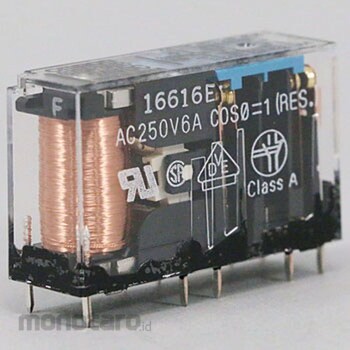

OMRON G7SA Safety, Relay
#Grup produk P102415081
Spesifikasi
| Rated Voltage (V) | DC24 |
|---|---|
| Ambient Relative Humidity (RH) | 5 to 85 |
| Vibration Resistance | 10~55~10 Hz, single amplitude 0.75 mm (double amplitude 1.5 mm) |
| Contact Resistance (miliΩ) | 100 or less (DC5V 1A voltage drop method) |
| Electrical Durability (times) | 100,000 or more (rated load, switching frequency 1800 / h) |
| Failure Rate P Level (V-mA) | (Reference Value: at Switching Frequency 120 times/min) DC5-1 (opening and closing frequency 300 times/min) |
| Insulation Resistance (MΩ) | 1000 or more (DC500V insulation resistance meter) |
| Maximum Switching Frequency (times/hour) | 36000 |
| Mechanical Durability (times) | 10 million (opening and closing frequency 36,000 / h) |
| Operating Ambient Temperature (°C) | -40 to +85 (with no icing or condensation) |
| Operating Time (ms) | 20 or less (ambient temperature 23 ° C) |
| Protection Class | Flux resistant type |
| Response Time | 10 ms or less |
