Addition of 10A type to G7S type
Forced guide Relays with contacts ( EN 50205 / Class A VDE certified).
Back up the machine's CE marking (machine order).
By adopting the structure of the interlock circuit, the dangerous condition of the machine is avoided.
Prepare surface connection and back side connection socket.
Withstand voltage:
AC 4000 V 50/60 Hz 1 min
between coil contacts (between coil 3 and pole 4 and between coil 4 and 4 pole) Between coil contacts (excluding the coil 3 pole and the coil 4 pole): AC 2500 V 50/60 Hz 1 min
Different poles (3 pole, 5 pole and between 2 pole, 4 pole and 6 pole : AC 4000 V 50/60 Hz 1 min
Different polarities (1 pole, 3 pole, 5 pole and 2 pole, 4 pole, 6 Pole): AC 2500
V 50/60 Hz 1 min Cross pole contact: AC 1500 V 50/60 Hz 1 min

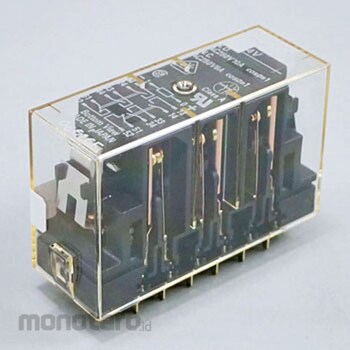

OMRON G7S-E Safety, Relay
#Grup produk P102415072
Spesifikasi
| Number of Poles | 6 |
|---|---|
| Vibration Resistance (Durability) | 10~55~10 Hz, single amplitude 0.75 mm (double amplitude 1.5 mm) |
| Ambient Relative Humidity (RH) | 5 to 85 |
| Rated Voltage (V) | DC24 |
| Minimum Applicable Load (V-mA) | DC5-1 |
| Allowable Operating Speed (mm-m/s) | less than 50 |
| Contact Resistance (miliΩ) | 100 or less (initial value) |
| Electrical Durability (times) | 100,000 or more (rated load, switching frequency 1800 / h) |
| Impact Resistance Durability (m/s²) | 1000 |
| Insulation Resistance (MΩ) | 100 or more (with DC500V insulation resistance meter) |
| Mechanical Durability (times) | 10 million or more (opening / closing frequency 18000 / h) |
| Operating Ambient Temperature (°C) | -25 to +70 (however, no freezing or condensation) |
| Operating Frequency (operation/hour) | Mechanical: 18000, resistive load: 1800 |
| Operating Time (ms) | less than 50 |
| Shock Resistance Malfunction (m/s²) | 100 or more |
| Vibration Resistance (Malfunction) | 10 to 55 to 10 Hz, single amplitude 0.375 mm (double amplitude 0.75 mm) |
