Power MOS FET relay of the same shape as G2R.
AC / DC both use, 1A load opening and closing possibility.
AC 240 V or DC 100 V, 1A load can be opened and closed.
Leakage current during open circuit open-circuit 10 μA or less.
Withstand voltage between input and output AC 2500 V.
Input resistance and built-in overvoltage absorption circuit.
AC full-wave rectification load and half-wave rectification load can be opened and closed.
RoHS compliant.

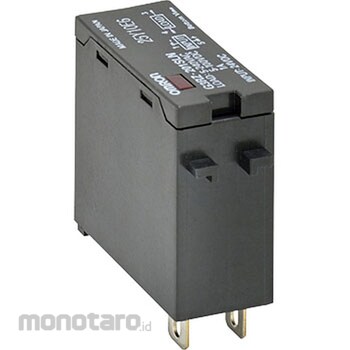

OMRON Power Mos Fet Relay
#Grup produk P102415036
Spesifikasi
| Type | Power relay |
|---|---|
| Suitable Load of Output | 1.0A AC5 to 240V, DC5 to 100V |
| Ambient Relative Humidity (RH) | 45 to 85 |
| Equipped with / without Zero Cross Function | None |
| Return Voltage (V) | DC1 or more |
| Input Impedance (ohm) | 2.2k±20% |
| Insulation Resistance (MΩ) | 100 or more (with DC500V mega) |
| Leakage Current (mA) | Open circuit : 1x102 or less (at 125 VDC), 0.1 or less (at 200 VAC) |
| Load voltage (V) | AC3 to 264, DC3 to 125 |
| Operating Ambient Temperature (°C) | -30 to +85 (with no icing or condensation) |
| Operating Time (ms) | 6 or less |
| Operating Voltage (V) | AC19.2 or less |
| Operating Voltage Range (V) | DC19.2 to 28.8 |
| Operation Indicator Lamp | Included |
| Rated Load Voltage (V) | AC5 to 240, DC5 to 100 |
| Rated Voltage (V) | DC24 |
| Storage Temperature Range (°C) | -30 to +100 (with no icing or condensation) |
| Terminal Shape | Plug-in terminal |
| Type of Insulation | Photo-bol coupler |
