Surge voltage tolerance of output circuit is improved by compact, slim-type surge path function integrated with radiator .
UL, CSA, EN standard (Tü; V certification) acquired.

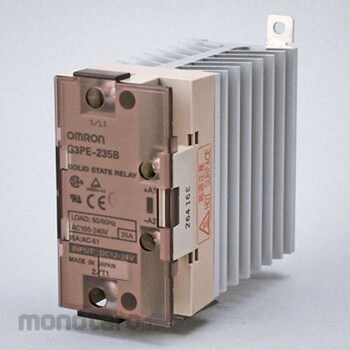

OMRON Solid State for Heater, Relay
#Grup produk P102415018
Spesifikasi
| Suitable Load of Output | 0.5 to 35A (at 25 ° C) |
|---|---|
| Ambient Relative Humidity (RH) | 45 to 85 |
| Equipped with / without Zero Cross Function | Included |
| Return Voltage (V) | DC1.0 or more |
| Insulation Resistance (MΩ) | 100 or more (at 500V mega) |
| Type of Insulation | Photo triac coupler |
| Leakage Current (mA) | 10 or less (at 200 VAC) |
| Load voltage (V) | AC75 to 264(50/60Hz) |
| Number of Phases | Single-phase |
| Operating Ambient Temperature (°C) | -30 to +80 (with no icing or condensation) |
| Operating Time (ms) | 1/2 cycle of load power supply + 1 or less |
| Operating Voltage (V) | DC9.6 or less |
| Operating Voltage Range (V) | DC9.6 to 30 |
| Operation Indicator Lamp | Yes (yellow) |
| Rated Load Voltage (V) | AC100 to 240(50/60Hz) |
| Rated Voltage (V) | DC12 to 24 |
| Storage Temperature Range (°C) | -30 to +100 (with no icing or condensation) |
| Type | Solid state/relay |
| Voltage Drop When Output Turned On (V) | 1.6 (RMS) or less |
