Pressure Sensor with Easy-to-Read LED Display
- Pressure status can be checked at a glance from the digital display and bar display.
- Measurement pressure prevents incorrect outputs due to momentary pressure changes.
- Perform automatic teaching simply by teaching pressure values for good and bad products.
- Industry’s smallest models at just 28 x 28 x 29 mm.
Power Supply Voltage: 12 to 24V DC±10% with a ripple (p-p) of 10% max.

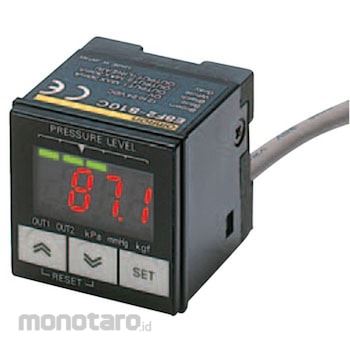

OMRON Digital Pressure Sensor
#Grup produk P102414888
Spesifikasi
| Ambient Humidity (% RH) | During operation and storage: 35 to 85 (with no condensation) |
|---|---|
| Cable Length (m) | 2 |
| Case Material | Heat resistant ABS |
| Current Consumption (mA) | Less than 70 when power saving function is activated |
| Display Accuracy | LED 3.5 digit digital display (red), LED bar display (green), when the output transistor is ON Orange LED lights (2 outputs independent), LED unit display (green) |
| Included Accessories | Mounting bracket |
| Influence of Voltage | ± 1.5% FS or less |
| Insulation Resistance (MΩ) | 100 or more (at 500 VDC) between live parts and case |
| Linearity | Linear output: ± 1% FS or less |
| Measurable Fluid | Non-corrosive / non-flammable gas |
| Output | NPN open collector (independent 2 outputs) <br> Linear output: 1 to 5 V (output impedance: 1 kΩ, allowable load resistance: 500 kΩ or more) |
| Output Type | NPN open collector |
| Power Supply Voltage (V) | 12 to 24±10% DC, ripple (pp) 10% or less |
| Protection Class | IEC standard IP50 |
| Protection circuit | Reverse connection, load short-circuit protection |
| Response Time | ON / OFF output: 5 ms or less |
| Setting Range Pressure (MPa) | 0-1 |
| Type | Output (ON / OFF): <br> Load current: 30 mA or less Output applied voltage: 30 V DC or less Residual voltage: 1 V or less (at 30 mA load current) |
| Type of Connection | Cord drawer type |
| Vibration Resistance (Durability) | 10 to 500Hz Double amplitude 1mm 150m/s2 X, Y, Z directions 11min x 3 sweep |
