Metal Head for long-distance Detection that
Withstands Harsh Environments Where the
Workpiece Can Rub against the Sensor
- Completely stainless-steel housing
- Long-distance detection equivalent to or greater than Proximity
Sensors with Resin Heads
- More than 20 times the durability of Proximity Sensors with Resin Heads
- Spatter-resistant Models with fluororesin coating are available.
- Aluminum chip immunity
- Pre-wired Smartclick Connector Models are also available.
Protection Circuits: Surge suppressor, Load short-circuit protection.
Ambient Temperature Range: Operating : -10 to 70°C, Storage : −25 to 70°C (with no icing or condensation).

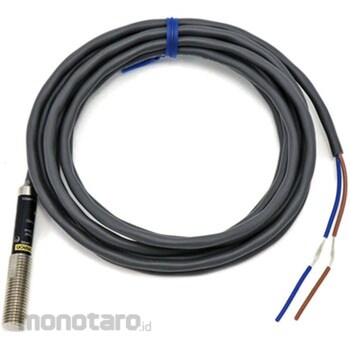

OMRON All Stainless Body Proximity Sensor
#Grup produk P102414709
Spesifikasi
| Size | Detection head size: M8 |
|---|---|
| Protection circuit | Surge absorbing load short circuit protection |
| Ambient Humidity (% RH) | In use: 35 to 95 Storage: 35 to 95 |
| Control Output | Switching capacity: 3 to 100mA, Residual voltage: 3V or less (Load current 100mA or less, when cord length is 2m) |
| Response Frequency (Hz) | 200 |
| Detection Distance (mm) | 2±10% |
| Type of Connection | Cord drawer type (Cord length: 2m) |
| Case Material | Stainless steel (SUS303) |
| Detection Method | Induction type |
| Head Shape | screw |
| Influence of Temperature | Change in detection distance within the temperature range of -10 to + 70 ° C is within ± 20% (based on detection distance at 23 ° C) |
| Influence of Voltage | Change in detection distance within ± 15% of rated power supply voltage ± 15% (based on detection distance at rated power supply voltage) |
| Insulation Resistance (MΩ) | 50 or more (at 500 VDC) between live parts and case |
| Material (Detection Surface) | Stainless steel (SUS303) |
| Power Supply Voltage (V) | DC10-30 ripple (pp) 10% included |
| Protection Class | IEC60529 standard IP67 |
| Setting Distance (mm) | 0 to 1.4 |
| Standard Sensing Object (mm) | Iron 12 x 12 x 1mm |
| Vibration Resistance (Durability) | 10~55 Hz, 1.5 mm double amplitude, 2 hours each in X, Y, and Z directions |
