High precision, split two-piece spring structure realizes high durability.
Adopted an integrally molded terminal structure that flux does not crawl.
Withstand voltage:
- Between the electrode terminal: AC600V 50/60Hz 1min
- Between charging metal portion and the ground, the terminal and the non-charging metal portion between: AC1500V 50/60Hz 1min
Insulation Resistance: 100MO or more (with DC 500V insulation resistance meter).
Operating Temperature Range: -25 to + 85°C 60% RH or less (However, freezing, no condensation).

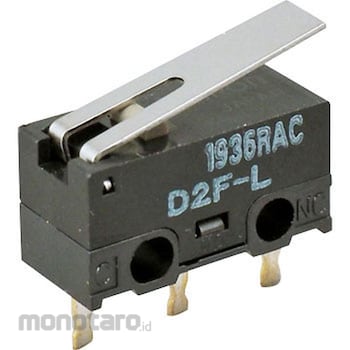

OMRON Extra Miniature Basic Switch (Hinge, Lever Type)
#Grup produk P102414578
Spesifikasi
| Protection Class | IEC IP40 |
|---|---|
| Withstand Voltage | Between same pole terminals: AC600V 50 / 60Hz 1min Between charging metal part and ground, between each terminal and non-charging metal part: AC1500V 50 / 60Hz 1min |
| Resistive Load (A) | (AC125V)3, (DC30V)2 |
| Contact Specifications | Crossbar |
| Type of Terminal | PCB terminal (straight type) |
| Allowable Operating Speed (mm to mm/s) | 5 to 500 |
| Contact Resistance (miliΩ) | 30 or less (initial value) |
| Contact Type | 1c (double throw type) |
| Electrical Durability | 30,000 times or more (30 times / min) |
| Insulation Resistance (MΩ) | 100 or more (with DC500V insulation resistance meter) |
| Mechanical Durability (times) | 1,000,000 or more (60 / min) |
| Minimum Applicable Load (V-mA) | DC5V-100 (reference value) |
| Operating Force OF (N) | Up to 0.78 |
| Operating Humidity Range | 85% RH or less (at 5 to 35 ° C) |
| Operating Temperature Range (°C) | -40 to +85 60% RH or less (with no icing or condensation) |
| Rated Voltage (V) | AC125, DC30 |
| Return Force (N) | 0.05 min |
| Shock Resistance Malfunction (m/s²) | Maximum 300 (value at operating limit position, contact closed or opened within 1 ms) |
| Type Of Actuator | Hinge / lever type |
| Vibration Resistance (Malfunction) | 10 to 55Hz, double amplitude 1.5mm (value at the operation limit position, contact closing or opening within 1ms) |
