- Tag data link capacity up to 180000 CH or more!
- EtherNet/IP unit is new.
- EtherNet/IP is an industrial multi-vendor network using Ethernet. Its specification is managed by ODVA (Open DeviceNet Vendor Association) as an open standard, and it is adopted for various industrial equipment.
- There is a tag data link function that shares data between nodes between devices and a message service function that transmits and receives data when necessary.
- FINS/UDP and FINS/TCP functions compatible with Ethernet units are installed.
- Cimmunication Function: Tag data link function, message communication function.
Cable: Twisted pair cable (with shield: STP)/Category 5, 5e or more.
Compliance Standard: cULus (Class I Div 2 Hazardous Locations Certified), NK, Lloyd, EC Directive.
Type: 100BASE - TX / 10BASE - T (However, 100BASE - TX is recommended).
Conform: CPU/NJ series, CJ series (CJ 1, CJ 2), CP 1 H, NSJ series.
OMRON Sysmac CJ Series Ethernet/IP Unit CJ1W-Eip21
#Grup produk P102414347
Spesifikasi
| Type | 100BASE-TX / 10BASE-T (However, 100BASE-TX is recommended.) |
|---|---|
| Suitable For | CPU / NJ series, CJ series (CJ1, CJ2), CP1H, NSJ series |
| Number of Occupied Units | Unit 1 |
| Applicable Standard | cULus (Class I Div 2 Hazardous Location Certified Product), NK, Lloyd, EC Directive |
| Transmission line | Star shape |
| Cable | Twisted pair cable (shielded: STP) / Category 5, 5e or higher |
| Access Method | (Medium) CSMA / CD |
| Communication Function | Tag data link function, message communication function |
| Current Consumption (A) | 0.41 or less (DC5V) |
| Maximum number of connections | 1 CPU mountable / Maximum 8 |
| Method | Modulation / baseband |
| Mounting Position | CPU device or expansion device |
| Number of Cascade Connections | No restrictions on the use of switching hubs |

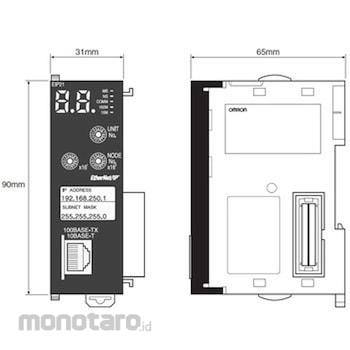

| Outer dimensions, Width W x Height H x Depth D (mm) | 31x90x65 |
| Transmission Speed | 100Mbit / s (100BASE-TX) |
| Transmission distance (m) | 100 (distance between switching hub and node) |
| Unit Type | CPU high-function unit |
