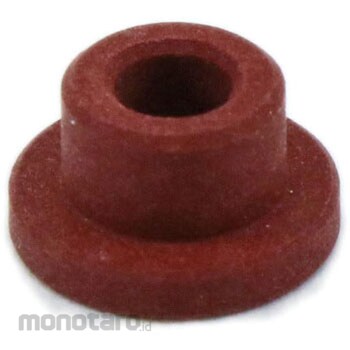

NTN AR Type Sleeve Bearing With Flange
#Grup produk P102398395
Kondisi Barang:
Authorized Partner
Spesifikasi
| Chamfer Dimensions C (mm) | 0.8 |
|---|---|
| Dimensions Measurement Temperature (°C) | 25 |
| Housing (mm) | 34 (recommended) |
| Inner Diameter d (Φmm) | 28 |
| Dimension R (mm) | 0.2 or less |
| Dimensions t (mm) | 3 |
| Load Direction | radial |
| Material (Main Unit) | Fluorine resin (PTFE) |
| Minimum Mounting Clearance (mm) | 0.08 |
| Operating Temperature Range | Less than + 80 ° C |
| Outer Diameter D1 (mm) | 34 |
| Outer Diameter D2 (Φmm) | 40 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Shaft Length (mm) | 28 (recommended) |
| Width (mm) | 30 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Dokumentasi Produk
Ulasan Produk
Tidak ada ulasan
