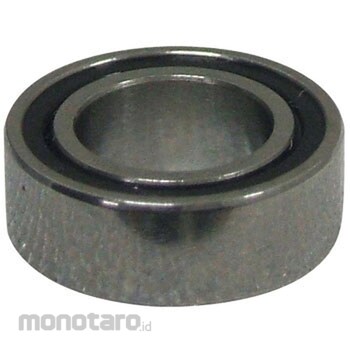

NTN Miniature Ball Bearing - Small Ball Bearing SS Standard Type
#Grup produk P102398173
Kondisi Barang:
Authorized Partner
Spesifikasi
| Basic Dynamic Load Rating Cr (N) | 171 |
|---|---|
| Load Direction | radial |
| Basic static load rating Cor (N) | 51 |
| Chamfer Dimensions r (mm) | 0.1 |
| Inner Diameter d (Φmm) | 2 |
| Flange | Without flange |
| JIS Grade | 0 |
| Material (Main Unit) | High carbon chromium bearing steel |
| Number of track trains | Single row |
| Outer Diameter d (mm) | 5 |
| Outer Ring Type | flat |
| Permissible Grease Lubrication Speed (rpm) | 74000 |
| Permissible Oil Lubrication Speed (rpm) | 87000 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Race ring Shape | Deep groove ball bearings |
| Rolling Element Material | High carbon chromium bearing steel |
| Shield Shape | Non-contact seal type on both sides |
| Width B (mm) | 2.5 |
