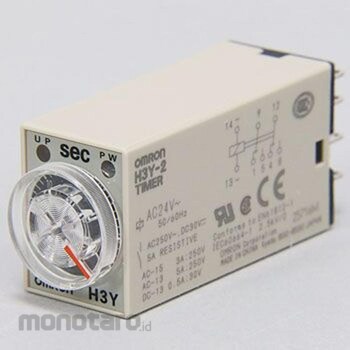

OMRON Solid state, timer H3Y-2 AC power supply
#Grup produk P102372078
Spesifikasi
| Type of Operation | Timed operation |
|---|---|
| Protection Class | IP40 |
| Allowable Voltage Range (V) | 85 to 110% of the power supply voltage 90 to 110% of the power supply voltage when used continuously at an ambient temperature of 50°C |
| Timed Contacts | 2c |
| Control Output | AC250V 5A resistive load (cosΦ = 1), minimum applicable load: DC5V 1mA (P level, reference value) |
| Adjustable Time (s) | 1.0 to 30 |
| Impact Resistance Durability (m/s²) | 1000 6 directions 3 times each |
| Influence of Voltage | ± 2% or less (at maximum scale time) |
| Insulation Resistance (MΩ) | 100 or more (with DC500V mega) |
| Maximum Setting Time of Graduation | 30s |
| Operating Ambient Temperature (°C) | -10 to 50 (no icing) |
| Power Supply Voltage (V) | AC24 |
| Service Life | Mechanical: 10 million times or more (no load, switching frequency 1800 times/h) Electrical: 500,000 times or more (AC250V 3A resistive load, switching frequency 1800 times/h) At normal temperature |
| Storage Temperature (°C) | -25 to 65 (no icing) |
| Terminal Shape | Plug-in (surface mounting) |
| Type | Monofunction timer |
| Vibration Resistance (Durability) | 10 to 55Hz, single amplitude 0.75mm, 3 directions, 1h each |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Ultra-small timer for sequence control with dedicated IC. .Repeatable error is
