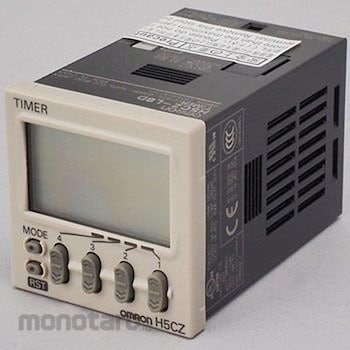

OMRON Digital timer H5CZ
#Grup produk P102371954
Spesifikasi
| Power Failure Memory | EEP-ROM (Rewritable more than 100,000 times) Data retention: 10 years or more |
|---|---|
| Character Height (mm) | (LCD) Clock value: 10 Set value: 6 |
| Color | Front panel: Light gray (5Y7 / 1) |
| Protection Class | IEC standard IP66, UL508 Type 4X (indoor), but only on panel surface (when using waterproof packing Y92S-29) |
| Control Output | AC250/DC30V 5A resistive load (cosΦ=1) Minimum applicable load: DC5V 10mA (P level, reference value) |
| Type of Sign | Embedded mounting, surface mounting (shared) |
| Influence of Voltage | (Ratio to set value) ±0.01%±0.05s or less (for power supply start) ±0.005%±0.03s or less (for signal start) |
| Input Method | Non-voltage input short-circuit impedance: 1 kΩ or less (outflow current approx. 12 mA at 0 Ω) Short-circuit residual voltage: 3 V or less Open-circuit impedance: 100 kΩ or more |
| Input Signal | Signal, reset |
| Insulation Resistance (MΩ) | (Between conductive part terminals and exposed non-current-carrying metal parts, between discontinuous contacts) 100 or more (at DC500V megger) |
| Number of Digits | 4 digits |
| Operating Ambient Temperature (°C) | -10 to + 55 (when closely attached: -10 to + 50 ° C) (with no icing or condensation) |
| Output Type | Contact output (time limit 1c) |
| Power Consumption | About 5.1VA / 2.4W |
| Power Supply Voltage (V) | AC24(50/60Hz)/DC12 to 24 |
| Service Life | Mechanical: 10 million times or more (no load, switching frequency 1800 times/h, ambient temperature conditions: 23°C) Electrical: 100,000 times or more (AC250V 5A resistance load, 1800 times/h, ambient temperature conditions: 23°C ) |
| Storage Temperature (°C) | -25 to + 70 ° C (with no icing or condensation) |
| Terminal Structure | Socket type (8 pins) |
| Withstand Voltage | Between live metal parts and non-live metal parts: 2000 VAC, 50/60 Hz for 1 min Between control output and power supply, input circuit: 2000 VAC, 50/60 Hz for 1 min Between non-continuous contacts: 1000 VAC, 50/60 Hz for 1 min |
