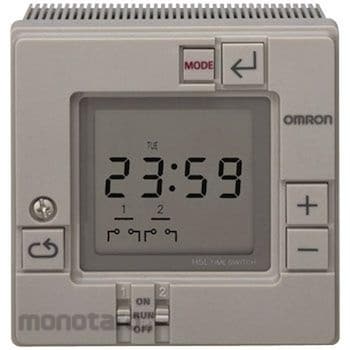

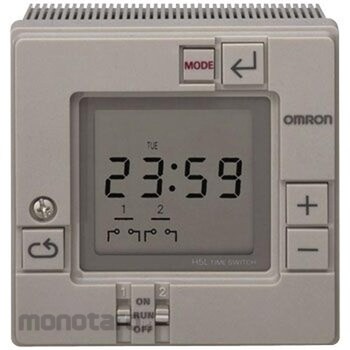

OMRON Daily time switch H5L
#Grup produk P102371787
Spesifikasi
| Setting Range | 0h0min to 23h59min |
|---|---|
| Operating Time Variation | ±0.01% ±0.05s or less ±0.01% is the value for the set time interval |
| Adjustable Time | 24h x 7 days (operation day can be specified) |
| Ambient Relative Humidity (RH) | 35 to 85 |
| Case Color | Light gray (Munsell 5Y7 / 1) |
| Wiring connection method | Screw terminal |
| Control Output | 2 circuits (1a x 2) AC250V 15A resistive load (ambient temperature 50°C) AC250V 12A (den-an certified rating) resistive load (ambient temperature 55°C) |
| Impact Resistance Durability (m/s²) | 300 6 directions 3 times each |
| Impulse Voltage (V) | 3k between operation power supply terminals 4.5k between current-carrying terminals and exposed non-current-carrying metal parts |
| Influence of Temperature | ±0.01% ±0.05s or less ±0.01% is the value for the set time interval |
| Influence of Voltage | ±0.01% ±0.05s or less ±0.01% is the value for the set time interval |
| Insulation Resistance (MΩ) | 100 or more (between conductive part terminals and exposed non-current-carrying metal parts, between operation power supply circuit and contact control output circuit part, between discontinuous contacts) |
| Noise resistance | Square wave noise 2kV by noise simulator (width 100ns, rise 1ns, polarity ±, phase 0 to 360 °) |
| Operating Temperature Range (°C) | -10 to +55 (no icing) |
| Power Consumption | Approx. 4 VA (at 240 VAC) |
| Power Supply Voltage (V) | AC100-240 50 / 60Hz (shared) |
| Service Life | 100,000 operations or more (resistive load, 250 VAC, 15 A) |
| Vibration Resistance (Destruction) | 10 to 55Hz, single amplitude 0.375mm, 3 directions, 2h each |
| Withstand Voltage | 2000 VAC 50/60 Hz 1 min (between current-carrying terminals and exposed non-current-carrying metal parts, between operating power circuit and contact control output circuit) 1000 VAC 50/60 Hz 1 min (between non-continuous contacts) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
With a large clock display, weekly control. . Daily time switch with a kind setting of a kind setting that can set while interacting with the screen, and with a large display. . Easy operation with 5 keys. . ON / OFF time setting is 24 steps. . A free power supply with AC 100 to 240 V. .With long-term power failure compensation (about 10 years). .Overseas safety standard UL, CSA acquired. . Day-to-day operation is possible with the same settings as timer operation.
