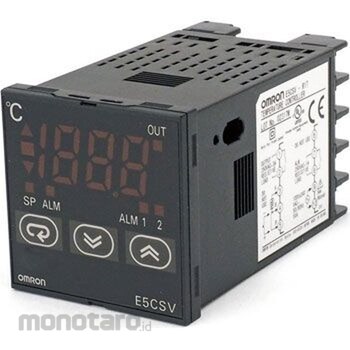

OMRON Thermac S Electronic temperature controller E 5 CSV
#Grup produk P102371565
Spesifikasi
| Type of Input | Thermocouple / RTD |
|---|---|
| Sampling Cycle (ms) | 500 |
| Case Color | Black |
| Type of control | ON / OFF control / PID control with auto tuning / PID control with self tuning |
| Control Output | Relay contacts |
| Ambient Relative Humidity (RH) | 25-85 relative humidity |
| Dimensions (mm) | 48x48 |
| Insulation Resistance (MΩ) | 20 or more (at 500 VDC) |
| Operating Ambient Temperature (°C) | -10 to +55 (no condensation or icing) / 3 years warranty: -10 to +50 |
| Pattern Setting | Digital setting with front keys |
| Power Consumption | 5VA |
| Power Supply Voltage (V) | AC100 to 240 |
| Sensitivity | Adjustment sensitivity / 0.1% FS (at ON / OFF control) |
| Storage Temperature Range (°C) | -25 to +65 (with no condensation or icing) |
| Terminal Shape | Terminal block type |
| Type of Display | 7-segment digital display (character height 13.5 mm) and deviation indication |
| Vibration Resistance (Malfunction) | 10 ~ 55Hz, 20m/s2, 3 -axis direction 10min |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Simple function with DIN 48 x 48 mm, easy setting with DIP switch. Easy to read digital display with a character height of 13.5 mm. .Meets RoHS Directive.
