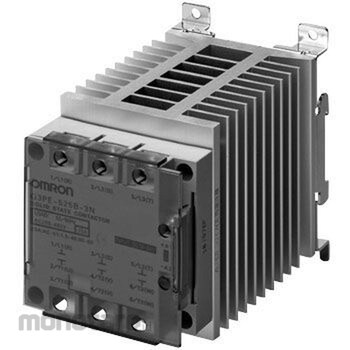

OMRON Solid state for heater, Contactor G3PE
#Grup produk P102371088
Sebelum PPN:
Rp4.599.900 - Rp6.199.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Ambient Relative Humidity (RH) | 45 to 85 |
|---|---|
| Equipped with / without Zero Cross Function | Included |
| Return Voltage (V) | DC1.0 or more |
| Insulation Resistance (MΩ) | 100 or more (at 500V mega) |
| Type of Insulation | Photo triac coupler |
| Leakage Current (mA) | 10 or less (at 200 VAC) |
| Load voltage (V) | AC180 to 528(50/60Hz) |
| Number of Phases | Three-phase |
| Operating Ambient Temperature (°C) | -30 to +80 (with no icing or condensation) |
| Operating Voltage (V) | DC9.6 or less |
| Operating Voltage Range (V) | DC9.6 to 30 |
| Operation Indicator Lamp | Yes (yellow) |
| Rated Load Voltage (V) | AC200 to 480(50/60Hz) |
| Rated Voltage (V) | DC12 to 24 |
| Storage Temperature Range (°C) | -30 to +100 (with no icing or condensation) |
| Type | DIN rail mounting type |
| Voltage Drop When Output Turned On (V) | 1.6 (RMS) or less |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Compact, slim type integrated heat sink, solid state for three phase heater, contactor
