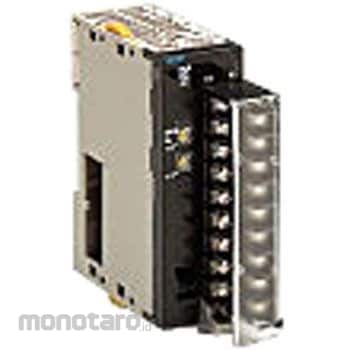

OMRON Programmable controller CJ1/CJ1M analog input/output unit
#Grup produk P102370955
Spesifikasi
| Applicable Standard | cULus (Class I Div2 Hazardous Location Certified Product), NK, Lloyd, EC Directive |
|---|---|
| Conversion Speed (ms/point) | 1 (can also be set to 500 μs / point) |
| Current Consumption (A) | 5V system: 0.58 |
| Data Memory | (A/D exchange output data) 16-bit binary data (setting data) 16-bit binary data |
| External Connection | Removable terminal block (18 points) |
| Function | Input/average processing, peak hold, scaling, disconnection detection, offset/gain adjustment Output/output hold, scaling, ratio conversion, offset/gain adjustment |
| Impedance (ohm) | Input voltage/1M or more, Input current/250 (fixed) Output voltage/0.5 or less |
| Mountable Device | CPU device, extension device |
| Number of Input Points | 4 points |
| Number of Outputs | 2 points |
| Outer dimensions, Width W x Height H x Depth D (mm) | 31x90x65 |
| Output Current (mA) | External output / Maximum 2.4 (per point) |
| Overall accuracy | Input: 25°C/±0.2%, 0 to 55°C/±0.4% Output: 25°C/±0.3%, 0 to 55°C/±0.5% (voltage), ±0.6% (current) |
| Range | I / O / 1 to 5V, 0 to 5V, 0 to 10V, -10 to 10V, 4 to 20mA (range selection / input 4 points individually, output 2 points individually) |
| Rated Input Current (mA) | ± 30 (per point) |
| Rated Input Voltage (V) | ± 15 (per point) |
| Resolution | 1/4000 (can also be set to 1/8000) Resolution and conversion speed cannot be set separately. |
| Terminal screw | M3 |
| Type of Insulation | Between input / output and PLC signal / photocoupler insulation (however, each input / output signal is not insulated) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Both analog input and analog output functions are realized with one unit. Analog signals of 4 inputs and 2 outputs can be used with 1 unit. Analog output: disconnection detection function, peak hold function, averaging processing function, offset gain adjustment function. Analog output: Output hold function, offset gain adjustment function. Other: Ratio conversion function
