OMRON RFID system amplifier integral controller V680 series
#Grup produk P102370487
Spesifikasi
| Vibration Resistance | 10Hz to 150Hz, double amplitude 0.2mm, acceleration 15m / s <sup>2</sup> variable vibration, swept 10 times in X, Y and Z directions for 8 minutes, no abnormality |
|---|---|
| Antenna | Connectable antenna / 1CH (V680-HS @@) |
| Insulation Resistance (MΩ) | Between terminals (excluding ground terminal) and case / 20 or more (at 500 VDC) |
| Protection Class | IP20 (IEC60529 standard) |
| Ambient Relative Humidity (RH) | 25 to 85 (no condensation, ambient temperature at 85 should be 40 ° C or less) |
| Case Material | PC + ABS resin |
| Operating Ambient Temperature (°C) | -10 to +55 (no freezing) |

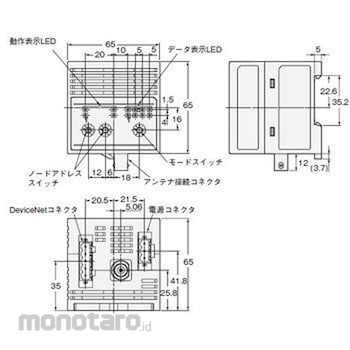

| Outer Dimensions (mm) | 65 x 65 x 65 (excluding protrusions) |
| Power Consumption (W) | 4 or less (Power supply voltage 24 V, current consumption 200 mA or less) |
| Power Supply Voltage (V) | DC24 (-15% to + 10%) including ripple (pp) 10% |
| Storage Temperature (°C) | -25 to +65 (no freezing) |
| Type of Terminal Fitting | DIN rail mounting |
