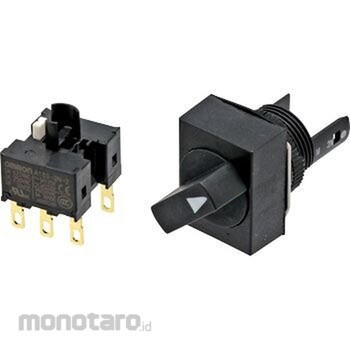

OMRON Knob Selector Switch Rectangular Round Body Form
#Grup produk P102369852
Spesifikasi
| Type of Operation | selector |
|---|---|
| Protection Class | IP65 |
| Button Color | Black |
| Terminal Shape | Solder terminal |
| Button Shape | Long angle |
| Withstand Voltage | Between homopolar terminals, between lamp terminals: 1000 VAC 50/60 Hz for 1 min / between different polarity terminals, between each terminal and ground: 2000 VAC 50/60 Hz for 1 min |
| Ambient Relative Humidity (RH) | 35 to 85 |
| Contact Configuration | 2c |
| Impact Resistance Durability (m/s²) | Up to 500 |
| Insulation Resistance (MΩ) | 100 or more (with DC500V mega) |
| Mechanical Durability | 250,000 times or more |
| Number of Notches | 2 |
| Operating Ambient Temperature (°C) | -10 to +55 (with no icing or condensation) |
| Return Function | Manual |
| Shock Resistance Malfunction (m/s²) | Up to 150 (within malfunction 1ms) |
| Storage Temperature (°C) | -25 to +65 (with no icing or condensation) |
| Type | Non-illuminated type |
| Vibration Resistance (Malfunction) | 10 to 55Hz, double amplitude 1.5mm (malfunction 1ms) |
