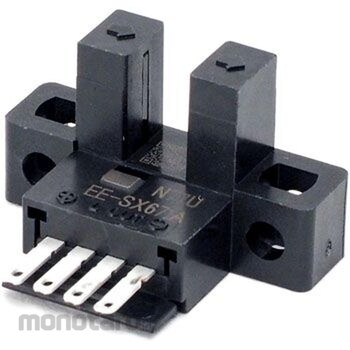

OMRON Photo, microsensor groove type connector type DC light EE-SX67
#Grup produk P102368756
Spesifikasi
| Ambient Humidity (% RH) | Operation: 5-85, storage: 5-95 (however, do not freeze or condense) |
|---|---|
| Ambient Illumination to Use (Lx) | Light receiving surface illuminance fluorescent lamp: 1000 or less |
| Case Material | Polybutylene terephthalate (PBT) |
| Control Output | NPN open collector output DC5~24V 100mA or less Residual voltage 0.8V or less (when load current is 100mA), residual voltage 0.4V or less (when load current is 40mA), off current 0.5mA or less |
| Cover Material | Polycarbonate |
| Current Consumption (mA) | 12 or less (L terminal open) |
| Detection Distance (mm) | 5 (groove width) (infrared light) |
| Detection Method | Transmission type (groove type) |
| Emitting Element | Infrared light emitting diode |
| Indicator Lamp | Dark-Light indicator ON (red) |
| Operation Mode | Dark-ON/Light-ON (selectable) |
| Output | NPN |
| Power Supply Voltage (V) | DC5~24 ± 10% Ripple (pp) 10% or less |
| Protection Class | IEC60529 standard IP50 |
| Response Frequency (Hz) | 1k or more (average value is 3k |
| Standard Sensing Object (mm) | 2 x 0.8 or more opaque body |
| Type | Thin connector type (DC light) |
| Type of Connection | Connector type (4 poles) (direct soldering possible) |
| Vibration Resistance (Durability) | 20~2000Hz (peak acceleration 100m/s2) Double amplitude 1.5mm X, Y, Z directions 2h (4min cycle) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
50 to 100 mA Direct opening and closing, series for built-in equipment. Entry display is bright and operation check is easy.
