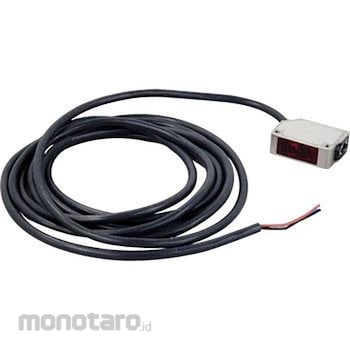

OMRON Stainless steel case small photoelectric sensor diffuse reflection type E3ZM-C
#Grup produk P102368118
Spesifikasi
| Response Time | Operation / Reset: 1 ms or less |
|---|---|
| Output | NPN |
| Ambient Humidity (% RH) | Operating: 35 to 85, Storage: 35 to 95 (with no icing or condensation) |
| Ambient Illumination to Use (Lx) | Light receiving surface illumination, incandescent lamp: 3000 or less, sunlight: 10000 or less |
| Protection circuit | Power supply reverse connection protection, output short circuit protection, output reverse connection protection, mutual interference prevention function |
| Cable Length (m) | 2 |
| Type of Connection | Cord drawer type |
| Case Material | SUS316L |
| Control Output | Load power supply voltage 30 VDC or less, load current 100 mA or less (residual voltage 2 V or less), open collector output type, light-on ON / light-on ON Code connection switching type |
| Current Consumption (mA) | 25 or less |
| Detection Distance (mm) | 1000 (300 x 300 white paper) |
| Detection Method | Diffuse reflection type |
| Head Shape | Square |
| Insulation Resistance (MΩ) | 20 or more (at 500 VDC) |
| Material (Lens) | Methacrylic resin |
| Power Supply Voltage (V) | DC10-30 including ripple (pp) 10% |
| Protection Class | IEC standard IP67, DIN40050-9 standard IP69K |
| Type | Built-in amplifier |
| Vibration Resistance (Durability) | 10~55 Hz, 1.5 mm double amplitude, 2 hours each in X, Y, and Z directions |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Stainless steel case (SUS 316 L) suitable for food industry. Cleaning agent, disinfectant, also resistant to jet water flow. Ecolab acquired certification in Europe
