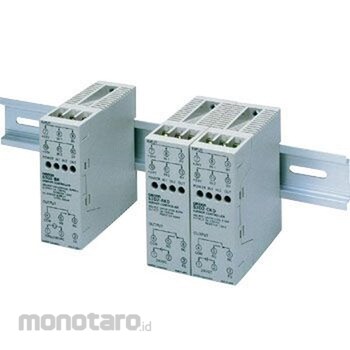

OMRON Sensor controller S3D2
#Grup produk P102368048
Spesifikasi
| Type | 2 input 1 output multi-function type |
|---|---|
| Power Outage Compensation Time (ms) | (Instantaneous) 20 or less |
| Response Time (ms) | (Input) 0.1, (Output) 10 or less |
| Control Output | Relay output 1c (common), AC250V 3A (cosΦ = 1) |
| Ambient Humidity (% RH) | During operation and storage: 35 to 85 each |
| Ambient Temperature (°C) | Operating: -10 to +55, Storage: -25 to +65 (with no icing) |
| Electrical life (rated load) | (Relay output) 100,000 times or more (opening / closing frequency 1800 times / hour) |
| Input Signal | ON: 0 to 4 V (5 mA or more) OFF: 8 to 12 V (2 mA or less) Short-circuit current: 11 mA (typ.) (18 mA max.) Maximum applied voltage: 30 V |
| Mechanical life | (Relay output) 50 million times or more (opening and closing frequency 18000 times / hour) |
| Minimum Pulse Width (ms) | (Output) 10 or less |
| Noise resistance | Operational power supply: 1500Vp-p or more, pulse width 100ns, 1μs, rise 1ns pulse Input/output: 1200Vp-p or more, pulse width 100ns, 1μs, rise 1ns pulse |
| Other Functions | Signal input inversion function, synchronous mode switching function, AND / OR operation mode switching function |
| Power Consumption (V/A) | 15 or less |
| Power Supply Voltage (V) | AC100 to 240±10% 50/60Hz |
| Power for Sensor | DC12V ± 10% (including all fluctuations), 200mA or less (with short circuit protection) |
| Timer Function | One shot, ON delay, OFF delay function, 0.1 to 1 s, 1 to 10 s switchable |
| Vibration Resistance (Destruction) | 10 to 55Hz, double amplitude 0.75mm X, Y, Z directions 2h |
| Withstand Voltage (V) | AC1500 or more Between all power terminals and I / O terminals, non-charge metal parts |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Built-in high-speed input response timer function of 0.1 ms. High speed input response of 0.1 ms. Ideal as a 2-input controller. Also available is a 1-input 1-output off-delay (2 circuits) type (S3D2-DK / EK) convenient for power supply 24V type (S3D2-AKD / CKD / CCD), load control, The power supply for the sensor is 200 mA. Ultra slim body with a width of 30 mm. Multifunction type equipped with timer function available
