OMRON RFID system antenna amplifier separation type V680 series
#Grup produk P102367623
Spesifikasi
| Ambient Relative Humidity (RH) | 35 to 95 (no condensation) |
|---|---|
| Shock Resistance (m/s2) | Apply 500 impacts 3 times in each direction of X, Y, Z 18 times in total, no abnormality |
| Cable Length (m) | 2 |
| Vibration Resistance | 10Hz to 500Hz, double amplitude 1.5mm, acceleration 100m/s2 variable vibration in X, Y and Z directions 1 sweep for 11 minutes, no abnormalities |
| Insulation Resistance (MΩ) | Between cable terminals and case / 20 or more (at 500 VDC) |
| Protection Class | IP67 (IEC 60529: 2001) Oil resistant IP67G equivalent ( JIS C 0920: 2003 Annex 1) (Antenna part) |
| Cable Material | PVC |
| Case Material | ABS resin |
| Material (Filled Resin) | Epoxy resin |
| Operating Ambient Temperature (°C) | -10 to +60 (no freezing) |
| Product Code | V68H1010D |

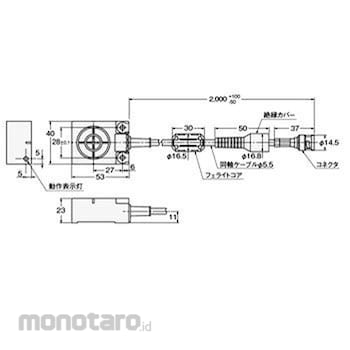

| Size (mm) | 40x53x23 |
| Storage Temperature (°C) | -25 to +75 (no freezing) |
| Type | Square type |
| Withstand Voltage (V) | Apply 1000 AC (50/60Hz) for 1 minute between all cable terminals and case, leakage current 5mA or less |
