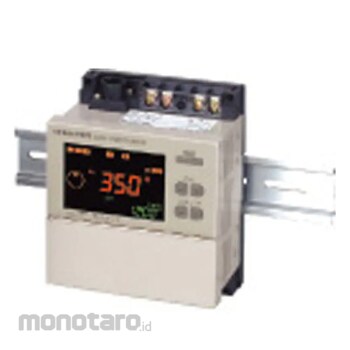

OMRON Cam positioner H8PS
#Grup produk P102367535
Sebelum PPN:
Rp9.699.900 - Rp21.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Electrostatic Strength (kV) | 8 (malfunction), 15 (destruction) |
|---|---|
| Safety Standard | cULus (Listing): UL508/CSA C22.2 No.14 |
| Vibration Resistance (Malfunction) | 10 to 55Hz, single amplitude 0.5mm, 3 directions, 10 minutes each,\nexcluding USB communication |
| Unit of Measurement | 0.5° unit (at 720 resolution), 1° unit (at 256/360 resolution) |
| Encoder Input | Connect a dedicated absolute encoder\nResponse rotation speed (in operation mode, trial run mode)\nAt 256/300 resolution: max.1600r/min (1200r/min if advance angle function is set for 4 cams or more) At 720\nresolution : max.800r/min (600r/min if advance angle function is set for 4 cams or more)\nAbnormal data detection function available |
| Family Type | H8PS |
| Impulse Voltage (V) | Between power input terminals: 1k, between conductive terminals and exposed non-current-carrying metal parts: 1.5k |
| Insulation Resistance (MΩ) | 100 or more (at 500V DC) between_x000D_ conductive terminals and exposed non-current-carrying metal parts, between all conductive parts and USB connectors |
| Notation | English notation |
| Output Configuration | NPN transistor output |
| Response Time (ms) | Output: 0.3 or less |
| Shock Malfunction (m/s²) | 200 3 times each in each direction of 3 axes (except during USB communication) |
| Vibration Resistance (Durability) | 10 to 55 Hz, single amplitude 0.75 mm, 3 directions, 2 hours each |
