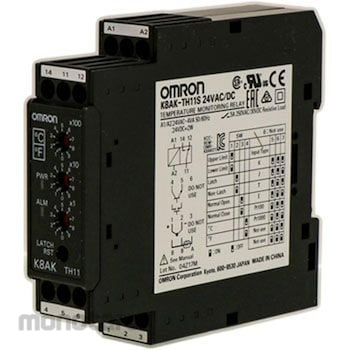

OMRON Temperature alarm machine
#Grup produk P102367508
Spesifikasi
| Display LED | PWR: Green, ALM: Red |
|---|---|
| Material (Main Unit) | PC+ABS UL94-V0 |
| Mounting | DIN rail mounting |
| Operating Voltage Range | 85 to 110% of rated power supply voltage |
| Outer Dimensions (WxDxH) (mm) | 22.5x100x90 |
| Power Consumption | 2W or less (DC24V), 4VA or less (AC24V) |
| Power Supply Voltage (V) | AC/DC24 |
| Protection Class | IP20 |
| Screw Tightening Torque (N m) | 0.49 to 0.59 |
| Type of Input | Thermocouple / platinum resistance thermometer |
| Withstand Voltage (V) | AC2300 50 or 60Hz 1min (different pole charging part terminal) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The latest model of inexpensive temperature alarm. The temperature range extends to 0 to 999 degrees Celsius.Accuracy improvement (* compared with conventional model). Accurate setting of 1 degree Celsius step
