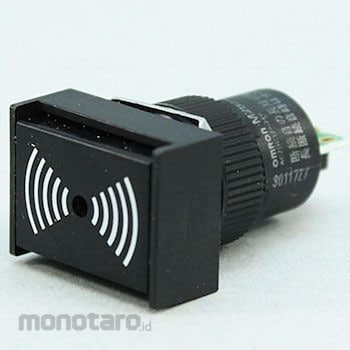

OMRON Buzzer round bell shape
#Grup produk P102367456
Spesifikasi
| Type | General volume type |
|---|---|
| Protection Class | IP40 |
| Applicable Voltage (V) | AC/DC12 to 24 |
| Sound Pressure Level (dB) | TYP.80 (horn) or more (distance 0.1m, rated voltage) |
| Buzzer Sound | When the shorting piece A is inserted: Intermittent sound (Holo / Holo / Holo), When the shorting piece B direction is inserted (When the short piece is removed): Continuous sound (Pu-Pu) |
| Withstand Voltage | AC1000V / 1min (between each terminal and ground) |
| Ambient Relative Humidity (RH) | 35 to 85 |
| Current Consumption (mA) | Up to 7 (DC), Up to 20 (AC) |
| Durability | 1000h or more |
| Frequency (kHz) | (Drive) 2 ± 0.5 |
| Inrush Current (A) | Up to 1 |
| Insulation Resistance (MΩ) | 100 or more (between each terminal and ground) |
| Intermittent usage (times) | Long: 55 times/min±10% Short: 700 times/min±10% |
| Operating Ambient Temperature (°C) | -10 to +55 (with no icing or condensation) |
| Product Name | buzzer |
| Shape | Rectangle |
| Storage Temperature (°C) | -25 to +65 (with no icing or condensation) |
| types | Related products |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Fuselage length 22 mm round body shape
