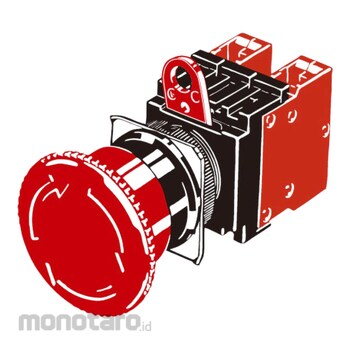

OMRON Emergency stop pushbutton switch phi 22 /
#Grup produk P102367410
Spesifikasi
| Pollution Degree (Environment to Use) | Pollution degree 3 (EN60947-5-1) |
|---|---|
| Withstand Voltage | Between homopolar terminals, between each terminal and ground: 2500 VAC 50/60 Hz for 1 min. |
| Ambient Relative Humidity (RH) | 35 to 85 |
| PTI (Proof Tracking Index) | 175 |
| Contact Configuration | 2b |
| Electric Shock Protection Class | Class II |
| Electrical Durability | 300,000 times or more (once set or reset) |
| Impact Resistance Durability (m/s²) | 1000 |
| Insulation Resistance (MΩ) | 100 or more (with DC500V mega) |
| Light Source | LED |
| Mounting Hole Diameter P (mm) | 22/25 |
| Shock Resistance Malfunction (m/s²) | 250 or more (malfunction less than 1ms) |
| Storage Temperature (°C) | -40 to +70 (with no icing or condensation) |
| Vibration Resistance (Malfunction) | 10 to 55 Hz, 1.5 mm double amplitude (within 1 ms) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
