OMRON RFID system ID controller V680 series
#Grup produk P102367225
Spesifikasi
| Shock Resistance (m/s2) | 150 |
|---|---|
| Output specifications | Supports both PNP and NPN (RUN, BUSY / OUT3, ERROR / OUT4, OUT1, OUT2) |
| Ambient Relative Humidity (RH) | 25 to 85 (non-condensing) |
| Communication Protocol | RS232C, RS-422/RS-485 |
| Connector | 2CH |
| Type | DC power supply |
| Input Voltage (V) | DC24 (-15 to + 10% ripple included) |
| Input specifications | Supports both PNP and NPN (RST, TRG1, TRG2) |
| Insulation Resistance (MΩ) | Between power terminals and GR case, between GR and terminals / 20 or more (at 500 VDC) |
| Interface | (Communication) RS232C, RS422 / RS485 |
| Material (Main Unit) | PC resin, ABS resin |
| Maximum Switching Voltage (V) | Output / DC24 (-15 to + 10% ripple included) |
| Operating Ambient Temperature (°C) | -10 to +55 (no freezing) |

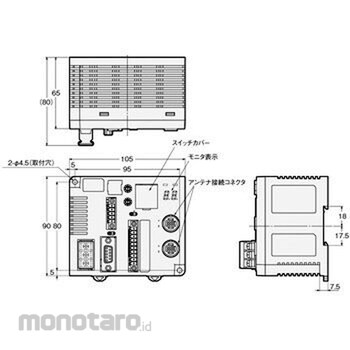

| Outer Dimensions (mm) | 105 x 90 x 65 (excluding protrusions) |
| Power Consumption | 15W or less, 0.8A or less |
| Power Supply Voltage (V) | DC24(-15 to +10%) |
| Protection Class | Built-in panel type (equivalent to IP20) |
| Storage Temperature (°C) | -25 to +65 (no freezing) |
| Vibration Resistance | 10Hz to 150Hz, double amplitude 0.2mm, acceleration 15m/s2 variable vibration, swept 10 times in X, Y and Z directions for 8 minutes, no abnormality |
