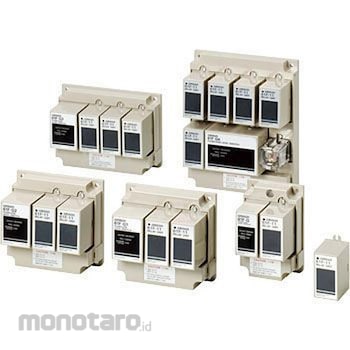

OMRON Switch without float base type 61F-G
#Grup produk P102366934
Spesifikasi
| Product Code | 61F41002D |
|---|---|
| Suitable Cable | 1km or less |
| Allowable Voltage fluctuation | 85 to 110% of rated voltage |
| Ambient Relative Humidity (RH) | 45 to 85 |
| Return Resistance Between Electrodes (ohm) (Recommended Value) | About 15k ~ ∞ |
| Conditions to Use | General water purification, sewage |
| Voltage Between Electrodes (V) | AC 8 |
| Control Target, Condition to Use | General water purification, sewage |
| Current between Electrodes | AC about 1 mA or less |
| Electrical life (rated load) | 500,000 times or more |
| Insulation Resistance (MΩ) | 100 or more (with DC500V mega) |
| Operating Ambient Temperature (°C) | -10 to +55 |
| Operating Resistance Between Electrodes (ohm) (Recommended) | 0 to about 4k |
| Output | AC220V 5A (resistive load), AC220V 2A (inductive load cosΦ = 0.4) |
| Power Consumption (V/A) | 14.5 or less |
| Rated Voltage (V) | AC110/200 |
| Shape of Tip | Automatic water supply that serves as both water level and water level indication and prevention of idling due to drought |
| Type | G4 type |
| Withstand Voltage | AC2000V 50/60Hz 1min |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
It is a basic type which is mounted with the building block type board directly attached type and easy to maintain.Maintenance is easy because the relay unit is a building block type. LED operation display with operating status at a glance. Also prepared for tropical treatment and high temperature.Stable detection is achieved even when the ambient temperature is high.
