The interruption capacity is as large as 15 A, and high precision. (Repeatability is good). Basic type of micro switch.
Compliance standard:
- (EC Directive (Low Voltage Directive)) 2006/95/EC
- (TUV) Standard Number: GB14048.5 (CSA) Standard Number: CSA C22.2 No.55 File No.:LR21642 EN 61058-1 File No.:R9451585
- (UL) Standard No.: UL 508 File No.:E41515
Withstand voltage:
- (Between same polarity terminals ) AC 1000 V 50/60 Hz 1 min (Between charging metal part and earth, each terminal and non-charging metal part) AC 2000 V 50/60 Hz 1 min
- Type of actuator: Panel mounting roller push button type
- Rated voltage (V): AC 125, 250, 500, DC 8, 14, 30, 125, 250
- Insulation resistance (MΩ): 100 or more (at DC 500 V mega)
- Impact resistance (durability): Up to 1000m/s²
- Ambient operating humidity: 35 to 95% RH
- Material (case): Thermosetting resin
- Contact interval: 0.5 mm

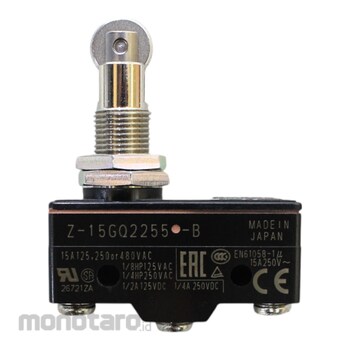

OMRON Large Basic Switch Z-15GQ2255-B
#Grup produk P102366642
Spesifikasi
| Type of Terminal | Screw terminal (Internal tooth washer) |
|---|---|
| Rated Voltage (V) | AC125, 250, 500, DC8, 14, 30, 125, 250 |
| Ambient Relative Humidity (RH) | 35 to 95 |
| Type Of Actuator | Panel mounting roller push button type |
| Applicable Standard | UL, CSA, TUV(EN61058-1), CCC(GB14048.5) |
| Withstand Voltage | (同極端子間)AC1000V 50/60Hz 1min (充電金属部とアース間, 各端子と非充電金属部間)AC2000V 50/60Hz 1min |
| Allowable Operating Speed | 0.01 to 1 |
| Contact Configuration | 1c |
| Contact Resistance (miliΩ) | 15 or less (initial value) |
| Dimensions (HxWxD) (mm) | 58.9x49.2x17.45 |
| Impact Resistance Durability (m/s²) | Up to 1000 |
| Insulation Resistance (MΩ) | 100 or more (with DC500V mega) |
| Mechanical Durability | 20 million times or more |
| Operating Ambient Temperature (°C) | -15-80 (no icing) |
| Protection Class | Drip-proof type: Equivalent to IP62 (excluding terminals) |
| Shock Resistance Malfunction (m/s²) | 300 (malfunction within 1ms) |
| Type of Operation | Snap action |
| Vibration Resistance (Malfunction) | 10 to 55Hz, double amplitude 1.5mm (malfunction 1ms or less) |
