OMRON Large Basic Switch Z-15GK55-B
#Grup produk P102366563
Spesifikasi
| Allowable Operating Speed (mm-m/s) | 0.01 to 1 |
|---|---|
| Ambient Relative Humidity (RH) | 35 to 95 |
| Applicable Standard | UL, CSA, TUV(EN61058-1), CCC(GB14048.5) |
| Contact Configuration | 1c |
| Contact Resistance (miliΩ) | 15 or less (initial value) |

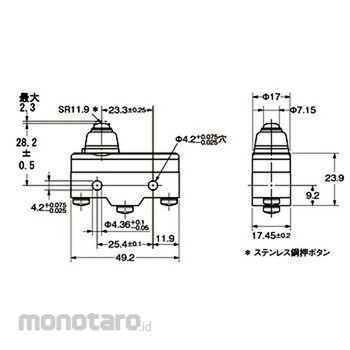

| Dimensions (HxWxD) (mm) | 39.7x49.2x17.45 |
| Impact Resistance Durability (m/s²) | Up to 1000 |
| Insulation Resistance (MΩ) | 100 or more (with DC500V mega) |
| Mechanical Durability | 20 million times or more |
| Operating Ambient Temperature (°C) | -15-80 (no icing) |
| Protection Class | Drip-proof type: Equivalent to IP62 (excluding terminals) |
| Rated Voltage (V) | AC125, 250, 500, DC8, 14, 30, 125, 250 |
| Shock Resistance Malfunction (m/s²) | 300 (malfunction within 1ms) |
| Type Of Actuator | Spring push button type (during OP) |
| Type of Terminal | Screw terminal (Internal tooth washer) |
| Vibration Resistance (Malfunction) | 10 to 55Hz, double amplitude 1.5mm (malfunction 1ms or less) |
| Withstand Voltage | (同極端子間)AC1000V 50/60Hz 1min (充電金属部とアース間, 各端子と非充電金属部間)AC2000V 50/60Hz 1min |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The interruption capacity is as large as 15 A, and high precision. (Repeatability is good). Basic type of micro switch.
