OMRON Panel Mount
#Grup produk P102366420
Spesifikasi
| Type of Terminal | Screw-tight terminal with drip-proof terminal protective cover |
|---|---|
| Rated Voltage (V) | AC125, 250, 500, DC8, 14, 30, 125, 250 |
| Ambient Relative Humidity (RH) | 35 to 95 |
| Type Of Actuator | Panel mounting push button type (during OP) |
| Applicable Standard | UL, CSA, TUV(EN61058-1), CCC(GB14048.5) |
| Withstand Voltage | (同極端子間)AC1000V 50/60Hz 1min (充電金属部とアース間, 各端子と非充電金属部間)AC2000V 50/60Hz 1min |
| Allowable Operating Speed | 0.01 to 1 |
| Contact Configuration | 1c |
| Contact Resistance (miliΩ) | 15 or less (initial value) |

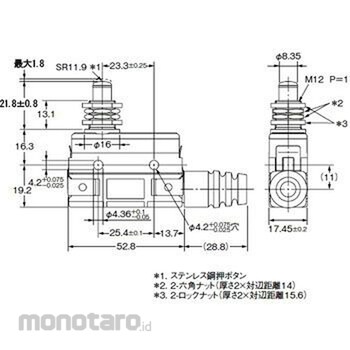

| Dimensions (HxWxD) (mm) | 41.1x49.2x17.45 |
| Impact Resistance Durability (m/s²) | Up to 1000 |
| Insulation Resistance (MΩ) | 100 or more (with DC500V mega) |
| Mechanical Durability | 20 million times or more |
| Operating Ambient Temperature (°C) | -15-80 (no icing) |
| Protection Class | Drip-proof type: Equivalent to IP62 (excluding terminals) |
| Shock Resistance Malfunction (m/s²) | 300 (malfunction within 1ms) |
| Type of Operation | Snap action |
| Vibration Resistance (Malfunction) | 10 to 55Hz, double amplitude 1.5mm (malfunction 1ms or less) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The interruption capacity is as large as 15 A, and high precision. (Repeatability is good). Basic type of micro switch.
