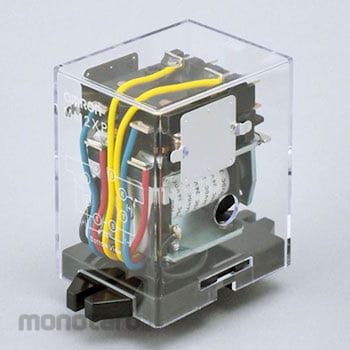

OMRON Power relaymm
#Grup produk P102366350
Spesifikasi
| Type | Power relay |
|---|---|
| Return Voltage (%) | 10 or more of the rated voltage |
| Ambient Relative Humidity (RH) | 5 to 85 |
| Vibration Resistance (Malfunction) | 10 to 55 to 10 Hz, single amplitude 0.5 mm (double amplitude 1.0 mm) |
| Contact Resistance (miliΩ) | 50 or less (DC5V 1A voltage drop method) |
| Electrical Durability | 500,000 operations or more (Rated load switching frequency 1800 times / h) |
| Impact Resistance Durability (m/s²) | 1000 |
| Insulation Resistance (MΩ) | 100 or more (measured with the DC500V insulation resistance meter at the same location as the withstand voltage) |
| Mechanical Durability | 5 million operations or more (opening / closing frequency 7200 operations / h) |
| Number of Poles | 2-pole |
| Operating Ambient Temperature (°C) | -10 to +55 (with no icing or condensation) |
| Operating Voltage (%) | 70 or less of rated voltage |
| Rated Voltage (V) | DC24 |
| Shape | Cased type |
| Shock Resistance Malfunction (m/s²) | 100 |
| Terminal Shape | Plug-in terminal |
| Vibration Resistance (Durability) | 10~55~10 Hz, single amplitude 0.75 mm (double amplitude 1.5 mm) |
| With or Without Diode | None |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Easy to install, easy to wire, easy to handle.It is possible to select according to the contact configuration, in addition to the DC load opening / closing, exposure type and application.Mechanical 5 million times, electrical (at rated load) 500,000 times High durability.Also available with diode built-in type and auxiliary power relay (JEC-174D)
