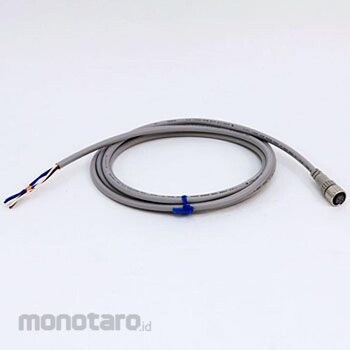

OMRON Round type waterproof connector Cable attachment connector socket One side connector XS 5
#Grup produk P102366086
Spesifikasi
| Protection Class | IP67(IEC60529) |
|---|---|
| Material (O-ring) | Rubber |
| Type | For DC |
| Cable Direction | Straight |
| Cable Holding Strength (N/15s) | 100 (Cable diameter Φ6mm) |
| Rated Voltage (V) | DC250 |
| Cable | Flame retardant, robot cable (UL AWM2464 CL3Φ6 4-core x AWG20 (0.08 / 110)) |
| Cable Length (m) | 2 |
| Connector | One side connector |
| Contact Resistance (miliΩ) | (Connector part) 40 or less (20mV or less, 100mA or less) |
| Cover Material | Polyester elastomer |
| Insulation Resistance (MΩ) | 1000 or more (at 500 VDC) |
| Lock Strength | Tensile: 100N / 15s, rotation: 1Nm / 15s |
| Material (Fixing Bracket) | Zinc alloy / Ni plating |
| Material (Mounting Bracket) | (Nail) SUS |
| Number of Poles | 4 |
| Operating Temperature Range (°C) | -25 to +70 |
| Product Code | XS5F0007M |
| Rated Current (A) | 4 |
| Shape | Mating part: For DC |
