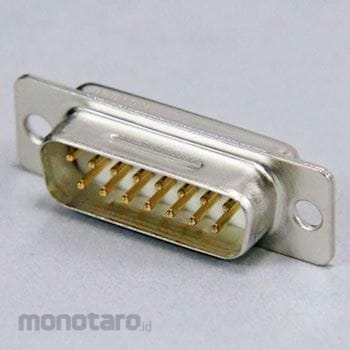

OMRON D sub connector plug, solder cup terminal XM 3
#Grup produk P102365102
Spesifikasi
| Rated Voltage (V) | AC300 |
|---|---|
| Material (Housing) | PBT resin (UL94V-0) / milky white |
| Plug | Solder cup terminal |
| Total Insertion Force | Number of poles x 3.33N or less |
| Contact Resistance (miliΩ) | 15 or less (20mV or less, 100mA or less) |
| Insulation Resistance (MΩ) | 103 or more (at 500 VDC) |
| Material (Contact Connection Part) | Brass |
| Material (Contact Terminal Pressure Connection Part) | Brass |
| Operating Ambient Temperature (°C) | -55 to +105 (no freezing at low temperatures) |
| Rated Current (A) | 5 |
| Suitable Wire | AWG22 to 28 (single wire, stranded wire) |
| Withstand Voltage (V/minute) | AC1000 (leakage current 1mA or less) |
