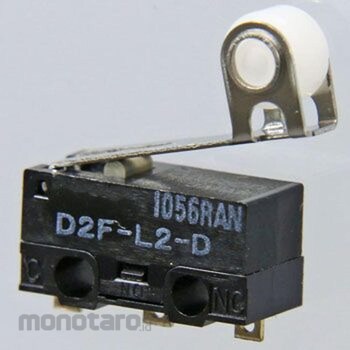

OMRON Ultra-small compact basic switch hinge, roller, lever type D2F
#Grup produk P102365078
Spesifikasi
| Vibration Resistance (Malfunction) | 10 to 55Hz, double amplitude 1.5mm (value at the operation limit position, contact closing or opening within 1ms) |
|---|---|
| Rated Voltage (V) | AC125, DC30 |
| Contact Specifications | Crossbar |
| Type Of Actuator | Hinge / roller / lever type |
| Allowable Operating Speed (mm to mm/s) | 5 to 500 |
| Contact Resistance (miliΩ) | 30 or less (initial value) |
| Contact Type | 1c (double throw type) |
| Electrical Durability | 30,000 times or more (30 times / min) |
| Impact Resistance Durability (m/s²) | 1000 (Value at the operation limit position, contact closing or opening within 1 ms) |
| Insulation Resistance (MΩ) | 100 or more (with DC500V insulation resistance meter) |
| Mechanical Durability (times) | 1,000,000 or more (60 times / min) |
| Minimum Applicable Load (V-mA) | DC5-100 (reference value) |
| Operating Force OF (N) | Up to 1.47 |
| Operating Humidity Range (%RH) | 85 or less (at 5 to 35°C) |
| Operating Temperature Range (°C) | -40 to +85 60% RH or less (with no icing or condensation) |
| Protection Class | IEC IP40 |
| Resistive Load (A) | (C125V) 3, (DC30V) 2 |
| Return Force (N) | RF: 0.05 min |
| Shock Resistance Malfunction (m/s²) | 300 max. (Value at the operation limit position, contact closing or opening within 1 ms) |
| Type of Terminal | Soldering small terminal |
