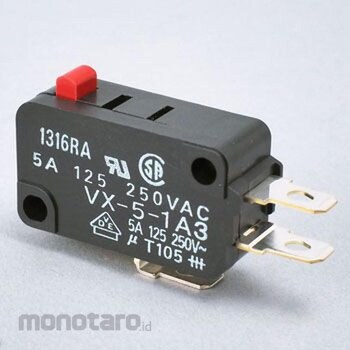

OMRON Small basic switch VX
#Grup produk P102364705
Spesifikasi
| Protection Class | IEC IP40 |
|---|---|
| Rated Voltage (V) | AC250 |
| Electric Shock Protection Class | Class I |
| Contact Resistance (miliΩ) | 30 or less (initial value) |
| Electrical Durability | 500,000 operations or more (30 operations/min) |
| Inrush Current (A) | Always closed: up to 15<ba> Always open: up to 15 |
| Insulation Resistance (MΩ) | 100 or more (with DC500V insulation resistance meter) |
| Location to Install | Lever: A position far from the push button (standard position) |
| Mechanical Durability | 50 million operations or more (60 operations / min) |
| Minimum Applicable Load (V-mA) | DC5-160 (reference value) |
| Operating Humidity Range (%RH) | 85 or less (at 5 to 35 ° C) |
| Operating Temperature Range (°C) | -25 to + 105 + 60% RH or less (however, no freezing or condensation) |
| PTI (Proof Tracking Index) | 175 |
| Type of Terminal | Solder terminal type |
| Withstand Voltage | Between terminals of the same pole: AC1000V 50 / 60Hz 1min Between the charging metal part and the ground, between each terminal and the non-charging metal part: AC1500V 50 / 60Hz 1min * When using a separator |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Even with low load operation, high contact contact force
