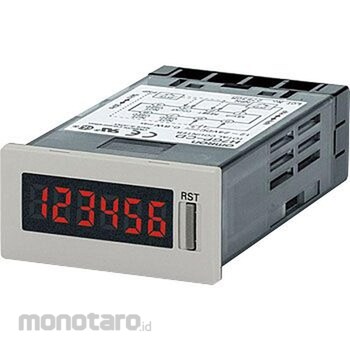

OMRON Total counter/time counter H7GP
#Grup produk P102364592
Spesifikasi
| Withstand Voltage | Between current carrying terminals and exposed non-current-carrying metal parts: 1000 VAC for 1 min |
|---|---|
| Protection Class | IP66 oil-resistant, US NEMA standard type 4 (indoor), but panel surface only |
| Power Failure Memory | Backup by EEP-ROM (over 200,000 rewrites) Data retention: 20 years or more |
| Character Height (mm) | 8.5 |
| Type of Connection | (External) Screw terminal |
| Color | (Front cover) Light gray |
| Power Consumption | 0.6W or less |
| Case Color | Grace smoke |
| Input Method | Non-voltage input (NPN transistor input, contact input) / voltage input (PNP transistor input) shared (switching with DIP switch) |
| Insulation Resistance (MΩ) | 100 or more (with DC500V mega) |
| Maximum counting speed | 30Hz / 5kHz (switching by DIP switch) |
| Number of Digits | 6 |
| Outer dimensions, Width W x Height H x Depth D (mm) | 48x24x80 |
| Power Supply Voltage (V) | DC12 to 24 |
| Type | Total counter |
| Type of Display | 7-segment negative type LCD (with red backlight) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
By adopting a negative type LCD with a character height of 8.5 mm and a red LED backlight, it achieves high visibility equivalent to LED with low power consumption. .IP66 oil resistant type, NEMA 4 realized by integration of front part and case part and oil resistant material. . Short body width of 80 mm is realized. . It corresponds to each input mode of NPN and PNP by switch switching. .It corresponds to both external reset and manual reset.. VDE 0106 Part 100 compliant finger safe terminal block cover for electric shock prevention.
