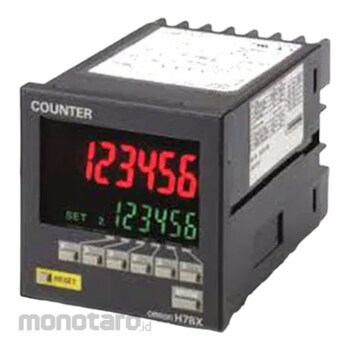

OMRON Preset counter H7BX
#Grup produk P102364459
Spesifikasi
| Case Color | Black (N1.5) |
|---|---|
| Function | 1-stage preset counter 2-stage preset counter Total preset counter Batch counter Dual counter Tachometer (switchable) With prescale function (0.001 to 99.999) With decimal point setting (lower 3 digits) |
| Included Accessories | 2 embedded mounting brackets, terminal cover, dip switch setting sticker |
| Input Signal | CP1, CP2, reset 1, reset 2, key protection |
| Insulation Resistance (MΩ) | 100 or more (at 500 VDC) Between conductive part terminals and exposed non-charged metal parts |
| Maximum counting speed | (Counter) 30Hz, 5kHz (switchable) (ON/OFF ratio 1:1) CP1, CP2 common setting (Tachometer) 30Hz, 10kHz (switchable) |
| Number of Digits | 6 Counter: -99999 to 999999 (-5 to +6) Tachometer: 0 to 999999 (6) |
| Operating Temperature Range (°С) | -10 to 55 (no icing) |
| Output Configuration | Contact output + NPN transistor output |
| Power Consumption | 8 VA or less (24 VAC), 5.3 W or less (12 to 24 VDC) |
| Power Input (V) | (External supply) DC12 |
| Power Supply Voltage (V) | AC24 (50/60) / DC12-24 (ripple content 20% or less) |
| Protection Class | IP54 (front only) |
| Type | Preset counter / tachometer |
| Type of Connection | (External) Screw terminal |
| Type of Display | 7-segment negative LCD with backlight (character height) Count value/13.5mm (red/green) Set value/9mm (green) *Displayed only when the power is turned on. Not displayed when power is off. |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Bright, easy-to-see negative LCD display. . High visibility is realized by using negative LCD with backlight. The display color change function (red
