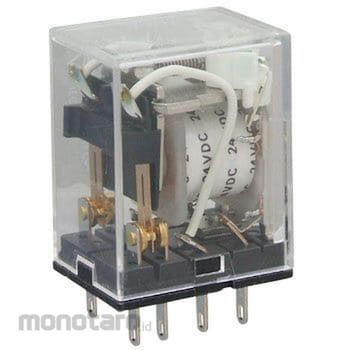

OMRON Mini Power Relay MY 2 Z
#Grup produk P102364103
Spesifikasi
| Ambient Relative Humidity (RH) | 5 to 85 |
|---|---|
| CR Circuit | None |
| Classification | Built-in operation indicator |
| Contact Configuration | 2c |
| Contact Resistance (miliΩ) | 50 or less (DC5V 1A voltage drop method) |
| Impact Resistance Durability (m/s²) | 1000 |
| Insulation Resistance (MΩ) | 100 or more (measured with the DC500V insulation resistance meter at the same location as the withstand voltage) |
| Number of Pins | 8 |
| Number of Poles | 2 |
| Operating Ambient Temperature (°C) | -55 to 60 (no freezing or condensation) |
| Outer Dimensions, Width W x Depth D x Height H (mm) | 21.5 or less x 28 or less x 36 or less |
| Rated Voltage (V) | DC24 |
| Return Voltage (%) | More than 10 |
| Shape | MY2ZN |
| Terminal Shape | Plug-in terminal |
| Type | Relay for control panel |
| Type of Connection | Standard type |
| Vibration Resistance (Durability) | 10 to 55 to 10 Hz, single amplitude 0.5 mm (double amplitude 1.0 mm) |
| With or Without Diode | None |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Eliminate the use of lead and respond to environmental conservation.We acquired VDE standard (Germany) and IMQ standard (Italy) additionally. By changing the color of the AC / DC coil tape, the discrimination of the AC / DC specification is improved.
