OMRON RFID system amplifier V680 series
#Grup produk P102364079
Spesifikasi
| Ambient Relative Humidity (RH) | 35 to 85 (no condensation) |
|---|---|
| Shock Resistance (m/s2) | Apply 500 impacts 3 times in each direction of X, Y, Z 18 times in total, no abnormality |
| Cable Length (m) | 10 |
| Vibration Resistance | 10Hz to 500Hz, double amplitude 1.5mm, acceleration 100m/s2 variable vibration in X, Y, Z direction 10 sweeps in 11 minutes, no abnormalities |
| Dimension L (mm) | 10000(+200/-100) |
| Protection Class | IP40 (IEC60529 standard)/V680-HS@@SR/V680-HS52-R connection IP67/IP65 (IEC60529 standard)/V680-HS@@SW/V680-HS52-W connection |
| Cable Material | PVC |
| Case Material | PC resin |
| Insulation Resistance (MΩ) | 20 or more (at DC100V megger) Applied between all cable terminals and the case |
| Material (Filled Resin) | Epoxy resin |
| Operating Ambient Temperature (°C) | -10 to +55 (no freezing) |

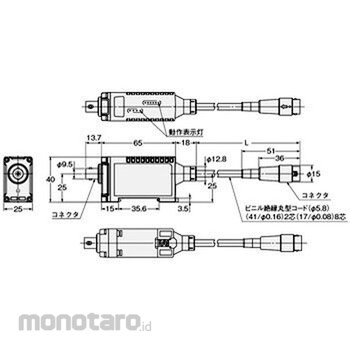

| Size (mm) | 25x40x65 (excluding protrusions) |
| Storage Temperature (°C) | -25 to +65 (no freezing) |
| Type | For 1k byte memory RF tag |
| Withstand Voltage (V) | Apply 1000 AC (50/60Hz) for 1 minute between all cable terminals and case, leakage current 5mA or less |
