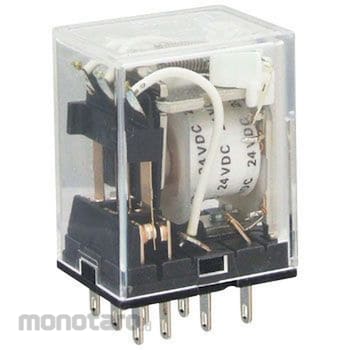

OMRON Mini Power Relay MY 3
#Grup produk P102363575
Spesifikasi
| Ambient Relative Humidity (RH) | 5 to 85 |
|---|---|
| CR Circuit | None |
| Contact Configuration | 3c |
| Contact Resistance (miliΩ) | 50 or less (DC5V 1A voltage drop method) |
| Impact Resistance Durability (m/s²) | 1000 |
| Insulation Resistance (MΩ) | 100 or more (measured with the DC500V insulation resistance meter at the same location as the withstand voltage) |
| Number of Pins | 11 |
| Number of Poles | 3 |
| Outer Dimensions, Width W x Depth D x Height H (mm) | 21.5 or less x 28 or less x 36 or less |
| Rated Voltage (V) | DC24 |
| Terminal Shape | Plug-in terminal |
| Type | Relay for control panel |
| Type of Connection | Standard type |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Eliminate the use of lead and respond to environmental conservation. .We acquired VDE standard (Germany) and IMQ standard (Italy) additionally. . By changing the color of the AC / DC coil tape, the discrimination of the AC / DC specification is improved.
